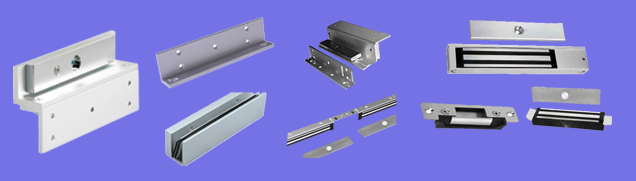

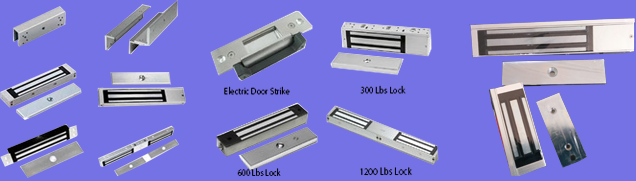

Models available in Electro Magnetic Locks:
| EM Lock -1200Lbs | SE ML 600 (600Lbs, 12vD C, 500m Amp, Indication LED) |
| EMlock-600Lbs | SE ML 600 (600Lbs, 12vD C, 500m Amp, Indication LED) |
| EM lock With Feedback-600Lbs | SE MLF 600 (600Lbs, 12vD C, 500m Amp Indication LED) |
| Flange Type EM Lock -600Lbs | SE MLMR 600 (600Lbs,12v D C, 500mAmp) |
| EMlock-300Lbs | SE ML 300 (300Lbs, 12v/D C, 380m Amp) |
| EM lock with feed back-300Lbs | SE MLIS 300 (300Lbs,12v/ D C, 380m Amp) |
| Flange Type with feed back -300Lbs | SE MLISF 300 (300Lbs, 12v/ D C, 380mAmp) |
| Flange Type, PermanentMagnet-300Lbs | SE MLFP 300 (300Lbs,12v/ D C, 380m Amp) |
Magnetic Lock Technical Specifications
| Holding Force | 300, 600,1200 Lbs |
| Operating Voltage | 12 V & 24V D.C |
| Current | 250 & 500m Amps |
| Operational temperature | -20C to +60C |
| Degree of protection | IP 65 |
| Protection level | Flame, Tamper proof & weather proof |
| Availability | With permanent magnet & with Feed back |
| Warranty | Seven Years |
| Mounting Type | Surface & mortised |
| No. of manoeuvres in 24 h | Continuous service |
| Finish | Nickel coated. |
POWER TO LOCK/POWER TO OPEN changeable on site
STAINLESS STEEL STRIKER Extra strength for latch
EXTRA SECURITY 3 hardened locking pins
CONTNUOUSLY RATED SOLENOID,Solenoid can be continously powered
INSTALLATION TEMPLATE Easy to use stick-on template for faster installations
IP56 WEATHER RESISTANT OPTION AVAILABLE
100 SUITABLE FOR 15 MM (5/8″) LATCH
