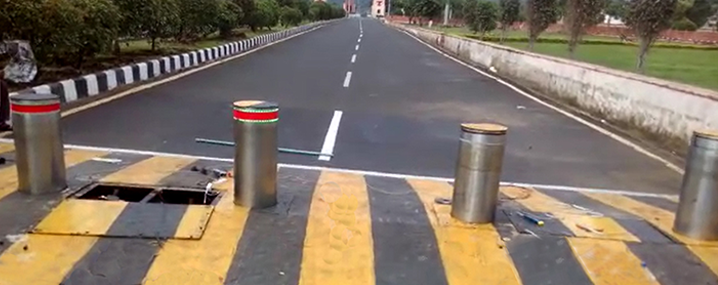

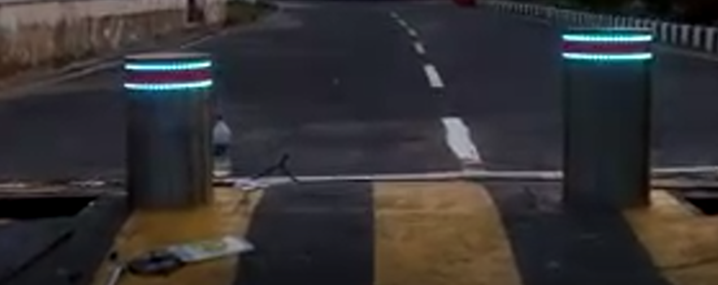

Electro Hydraulic automation consisting of a fully retractable post made of armoured steel, fitted with a security lock barrel to provide entry protection for shops, garages, car showrooms, banks and access control
Travel time | 4 – 10 sec |
Piston stroke | 740 mm |
Piston diameter | 40 mm |
Rising pushing power | 500 daN |
Max. pushing power | 1000 daN |
Total weight | 180 Kg |
Protection standards | IP 557 |
Power output | 1 KW (0.75 HP) |
Supply voltage | 230 V |
Frequency | 50 Hz Absorbed |
current | 2 A |
Capacitor | 15 µF |
Motor rotation speed | 1450 rev/min |
