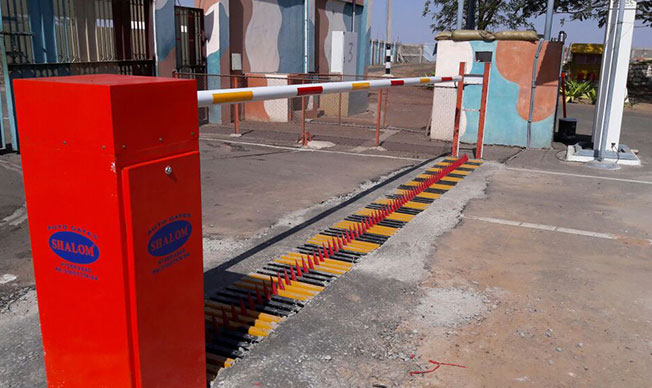

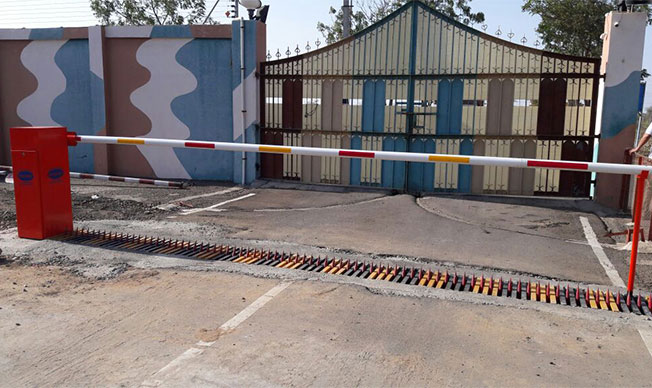

Boom Barriers
SHALOM® range of barriers are built from heavy gauge steel and the folded, welded case makes it extremely sturdy. The high torque electro-mechanical motor and gearbox are spring loaded and damped, decreasing mechanical stress and providing long term durability and problem free service.
Boom: Built from highly stable Aluminium alloy to produce rectangular / round profile
opening times:Models available from 2.5mts to 8mts
| Boom Length | opening time in seconds |
|---|---|
| 2.5mts | 2 sec |
| 3mts | 2.5 sec |
| 4mts | 4 sec |
| 5mts | 7 sec |
| 6mts | 7-9 sec |
| 7mts | 9-11 sec |
| 8mts | 12-16 sec |
TECHNICAL SPECIFICATIONS:
| Power Supply | 230V+ 10% 50/ 60 Hz single – phase. |
| Motor revolutions | 1400 rpm |
| Absorbed power | 250W |
| Capacitor | 15 uF |
| Max Absorbed Current | 1Amp |
| Insulation class | F |
| Thermal protection | 110° C |
| Manual man oeuvre | Personalized release key – knob |
| No. Manoeuvres in 24 hrs | Continuous service |
| Environmental conditions | 15° C to +60° C |
| Degree of protection | IP 53 |
| Lubrication | Erg oil |
