Standard Equipment:
  All bearings are permanently lubricated.
  Mechanically fastened arms (stronger than welded) and easily replaced if damaged.
  All locking components are hardened steel.
  Delrin main indexing cam provides years of maintenance free reliability.
  Bronze oil-impregnated bushings for low maintenance.
  Hot dipped galvanized finish
Standard Electric Components:
  24-volt operating system
  Fail lock or fail-safe.
  Heavy-duty pull type solenoid.
  Dry contact relay.
  12 volt pulse relay.
shape
SHALOM® ENTERPRISES
An ISO 9001:2000 certified company

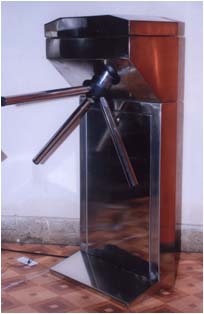

Tripod Turnstile Gates Available In M.S Body & S.S Body                                                Customized Models available
Arms: Hot dip galvanized steel tubing, wall thickness of 0.105" and 1.31" O.D. Arm Ends Spun closed under heat and pressure, for a smooth safe finish.

Heavy-duty electronically controlled turnstile can be equipped for automatic revenue collection systems. Uniquely upgradeable so that the turnstiles will remain for decades as revenue systems are changed. Wear and corrosion resistant. High security vault. Large captured ticket capacity. Extremely fast. Exceptionally low maintenance. Extremely long service life. Designed for the look of modern automatic fare collection systems. Three rotor sections provide a comfortable passage while still maintaining high security performance. Units are available with mechanical or electrical operation, in either one or two way operation, with any combination of fail lock or fail secure.

Drive: Hand operated

Orientation:Pass Left or Pass Right

Casing: 304 Grade grained Stainless Steel

Function: Passage in both directions,

Mechanism:
Control of the Tripod operation is achieved by an electro-mechanical head mechanism located within the top section of the turnstile casework. It is silent in rotation and comprises the following standard features: -

  • A positive lock action that prevents two passages at one time
  • A self centering mechanism to ensure complete rotation of the mechanism to the home position
  • Anti backup device to prevent reverse rotation once the mechanism has
       Moved 60O from home

Operating Modes: The mechanism can be configured to operate in two standard modes.

Normally Closed -
The mechanism is locked until a valid authorization Signal is received.

Normally Open -
The mechanism is permanently unlocked and will only lock If passage is attempted without a valid authorized signal. In this mode the MTBF are significantly increased from 1.5 to 2.5 million cycles, it reduces power consumption and increases passage throughput speeds.
Note - Mechanism fail state will be the same as power failure choice


  • Drive column in stainless steel suitable for outdoor installation

  • Stainless steel main body and door
  • Suitable indicator on the door surface for the using purpose
  • Access counter with optic sensor
  • Two way control property with solenoids
  • Self-centring mechanism with hydraulic damping means
  • Power: 24 V D.Cą%20, 30W
  • Various control options (Taken, remote control with button or wireless, smart card...)

Applications

  • Subway, tramway and train stations
  • Ferry terminals
  • Trade canters
  • Amusement areas
  • Hospitals and other places where access control needed
Swing Tripods (Handicap tripods)
General purpose electro-magnetic swing gate for handicapped and other access control requirements (i.e. bicycles).This unique bi-directional pedestrian gate is designed to accommodate the handicapped, individuals with carts, or other authorized users requiring a wider walkway.

SE STT U/B
SE SHTB
